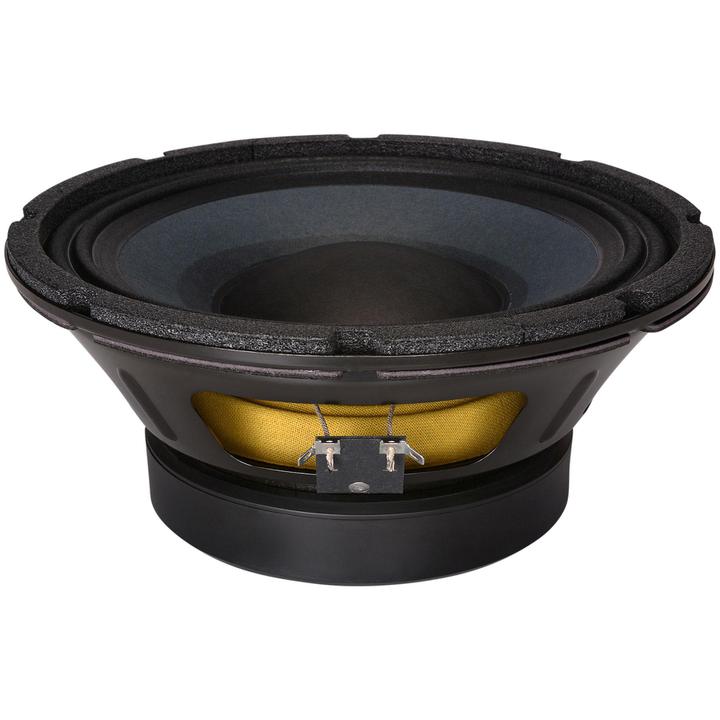

Eminence Delta-10B 10 Midrange Driver 16 Ohm Online
28 people are viewing this right now
19 products sold in last 7 hours
Selling fast! Over 9 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
For great midrange and woofer performance, try the Eminence Delta-10B 16 ohm 10 speaker. Its hefty 56 oz. magnet, 2-1 2 voice coil, and optimized moving parts are designed to guarantee success!
Highlights
- Kapton coil former
- Polyamide-imide coated copper voice coil
- Ferrite magnet
- Vented Pole Piece
- Pressed steel basket
- Paper cone
- Cloth accordian surround
-
- Nominal Diameter10
- Power Handling (RMS)350 Watts
- Power Handling (max)700 Watts
- Impedance16 ohms
- Frequency Response71 to 3,700 Hz
- Sensitivity98 dB 1W 1m
- Voice Coil Diameter2.5
- Magnet Weight56 oz.
- Resonant Frequency (Fs)65 Hz
- DC Resistance (Re)11.6 ohms
- Voice Coil Inductance (Le)0.79 mH
- Mechanical Q (Qms)8.34
- Electromagnetic Q (Qes)0.35
- Total Q (Qts)0.33
- Compliance Equivalent Volume (Vas)1.27 ft.³
- Mechanical Compliance of Suspension (Cms)0.21 mm N
- BL Product (BL)19.5 Tm
- Diaphragm Mass Inc. Airload (Mms)28g
- Maximum Linear Excursion (Xmax)3.5 mm
- Surface Area of Cone (Sd)344.9 cm²
- Cone MaterialPaper
- Surround MaterialCloth
- Voice Coil Wire MaterialCopper
- Voice Coil FormerKapton® Polyimide
- Basket Frame MaterialSteel
- Magnet MaterialFerrite
- Overall Outside Diameter10.09
- Baffle Cutout Diameter9.18
- Depth4.25
- # Mounting Holes8
- Sealed Volume0.18 ft.³
- Sealed F3171 Hz
- Vented Volume0.43 ft.³
- Vented F3104 Hz
